Type 1B - PES Waterproof Membrane
Type 1A - PES Ventilated Mesh

Type 1B - PES Waterproof Membrane

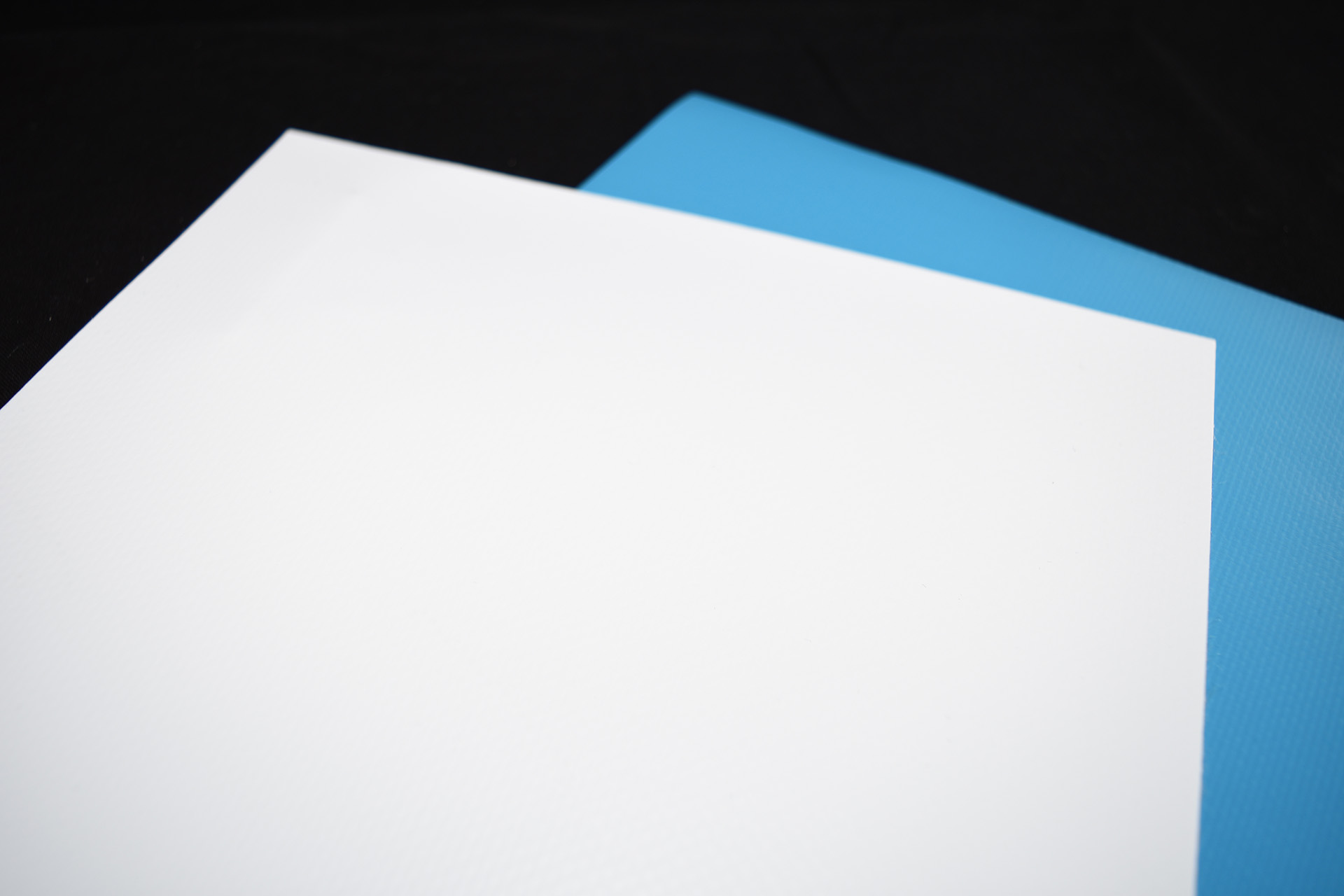

Type 1B – Waterproof PES

Main Benefits:

Applications: Typically used on canopy projects. Examples include: Stadiums & Athletic Facilities, Open Air Projects, Temporary Facilities, Train & Transit-Oriented Design, Airport Canopies, & Amphitheaters.
Cost: ($+) Most cost-effective waterproof screening material
Ventilation: 0% open / 100% solid (non-ventilated)
Colors: White (except for thinner membrane products that have multiple colors).

Additional Information:

Fire Rating: Fire-resistant, passing ASTM E-84 “class A” and NFPA 701 typically (independent fire testing available upon request)
Warranty: up to 20-year warranty on selected products
Lifecycle: Steel / Aluminum structure can be in continual use allowing for the fabric, the least expensive element to be replaced after its estimated lifespan of 20+ years.
Geography: Works well in a variety of climates
Green: 100% recyclable

What is PES Membrane:

Polyvinyl coated polyester (PES) non-ventilated fabric membrane with select manufacturers utilizing additional protective Polyvinylidene fluoride (PVDF) fluoropolymer and tio2 coatings on both sides for protection and longevity while creating an easy-to-clean surface

Type 1A - PES Ventilated Mesh

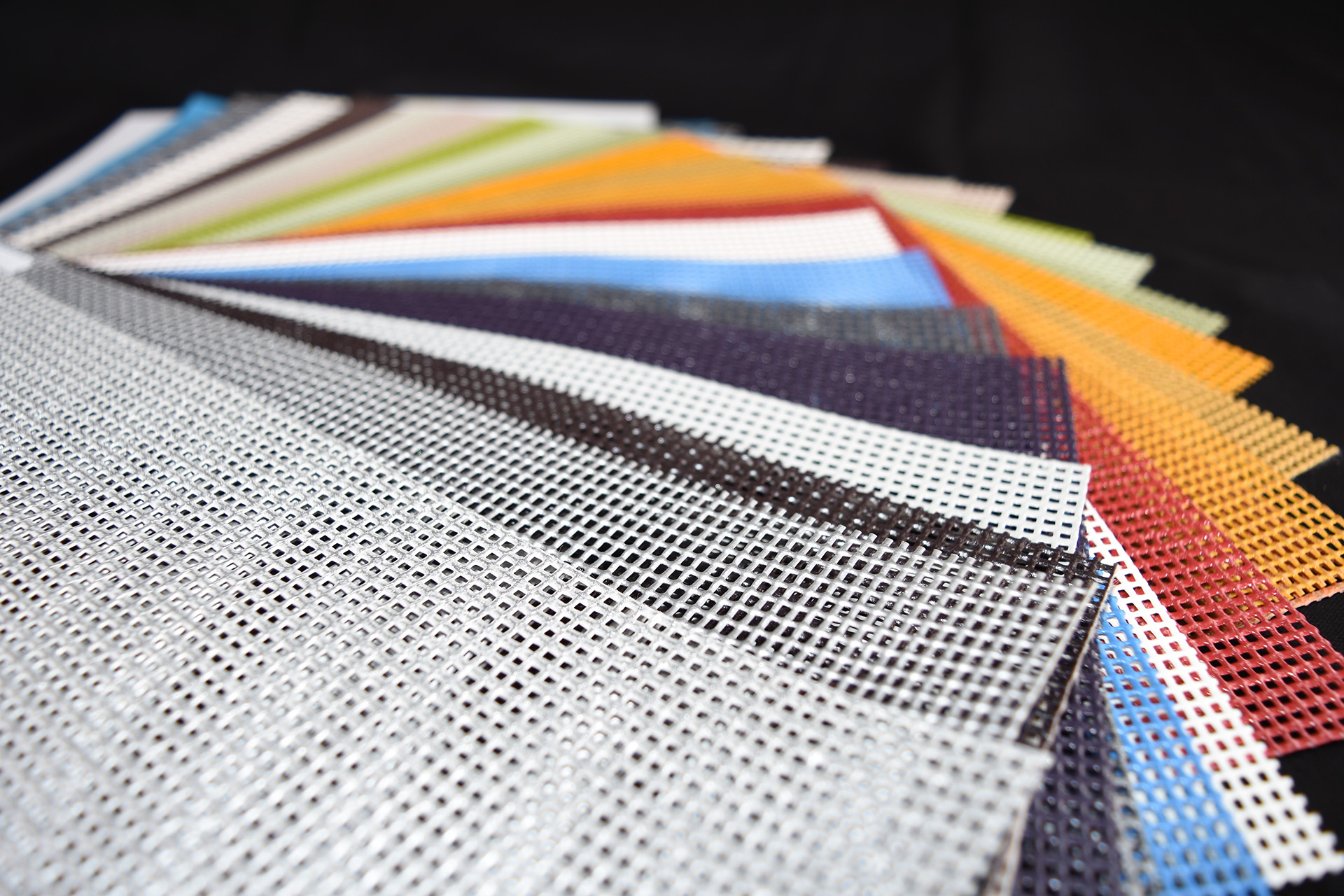

Type 1A – PES Ventilated Mesh

Main Benefits:

Applications: Most common and economical mesh type for ventilated facade screens (office buildings, parking garages, stadiums, roof screens) to provide shading/screening, lower heat gain, maintain views out, and maintain open airflow.
Cost: ($) Most cost-effective ventilated screening material
Ventilation: 10 to 53% open mesh (various manufacturer products to choose from)
Colors: Metallic silver that looks like metal or several other colors from various manufacturers. Custom colors available for larger projects.
Custom Graphics: Only material that custom artwork or logos can be applied

Additional Information:

Fire Rating: Fire-resistant, passing ASTM E-84 “class A” and NFPA 701 typically (independent fire testing available upon request)
Warranty: 10-year minimum warranty
Lifecycle: Steel / Aluminum structure can be in continual use allowing for the fabric, the least expensive element to be replaced after its estimated lifespan of 20 years.
Geography: Works well in a variety of climates
Green: 100% recyclable

What is PES Mesh:

Polyvinyl coated polyester (PES) ventilated fabric mesh with select manufacturers utilizing additional protective Polyvinylidene fluoride (PVDF) fluoropolymer and tio2 coatings on both sides for protection and longevity while creating an easy-to-clean surface.

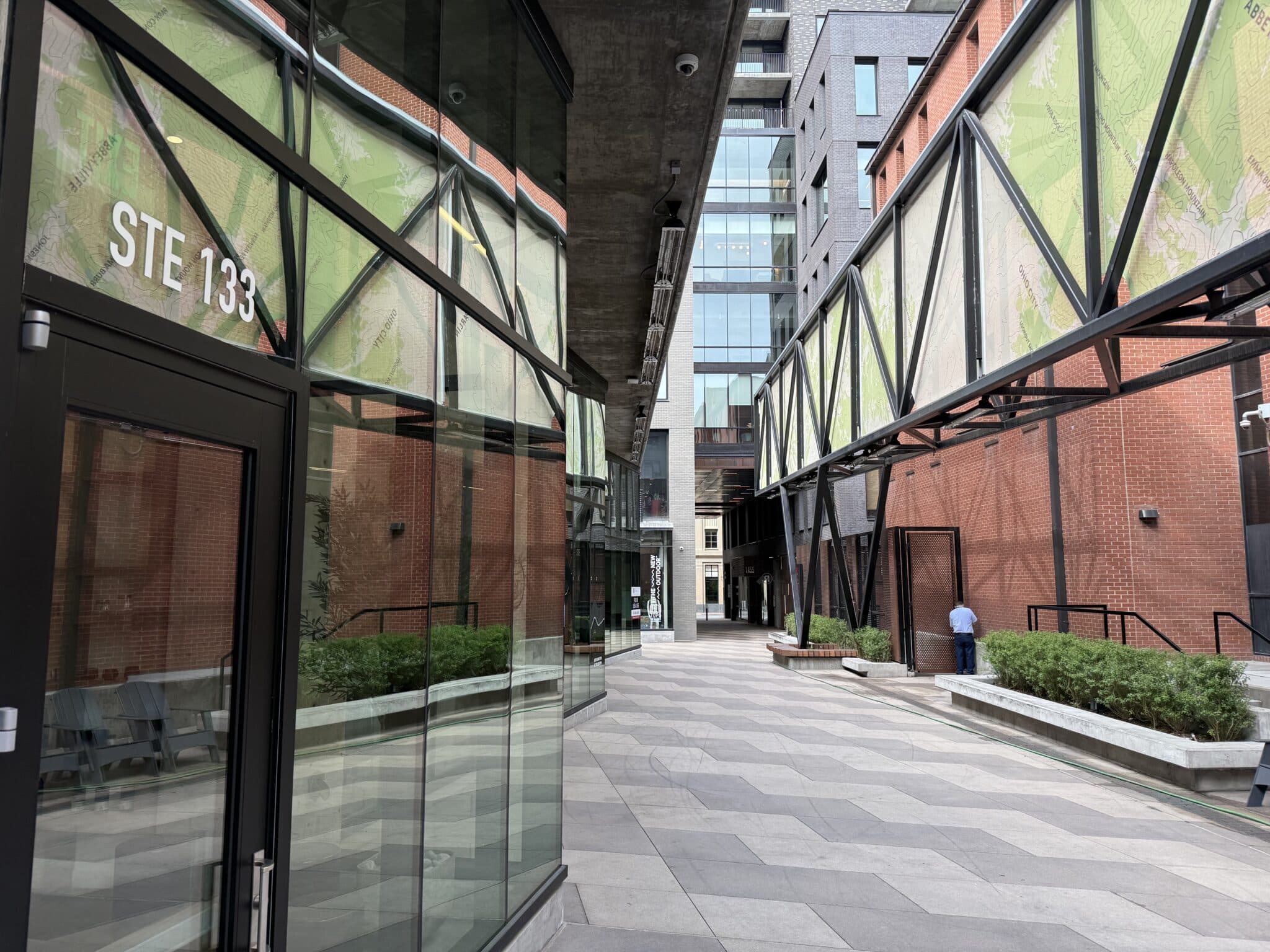

Projects From Our Portfolio Featuring PES

Contact Us For More Details

BLOG

West Hills Medical Office Building

The five-story, 60’s era West Hills Medical Office Building in Los Angeles was due for an exterior facelift. A complete exterior renovation by Michael W. Folonis Architects revealed that water infiltration had caused structural damage to the existing horizontal plaster awnings; removing them was a costly process that consumed much of the project budget. This […]

KieranTimberlake: Printed Tensile Cladding at Rice University

We are pleased to have collaborated with KieranTimberlake and the outfit of a parking structure on the Rice University Campus. In their blog post, they describe the concepts they employed to create an iconic sculptural element. For more details see the KieranTimberlake blog post.
